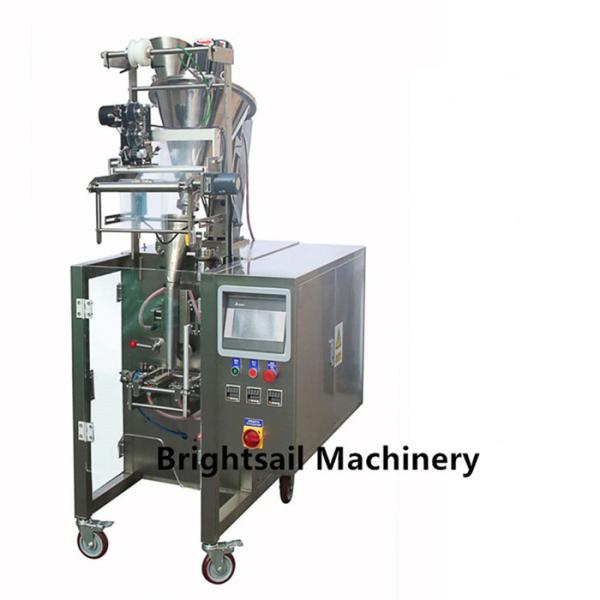

1 to 100 g mini bag powder filling packing machine tea pouch package machine
BSPM-F automatic powder filling machine is suitable for packing powder and granule material, such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc. And this machine is suitable for packing 1-100g small bags.
Main features:
1. PLC control system, color touch screen display, cup volumetric filler/electronic weighter measurement, this machine is the latest type of multi-function tea bag packaging machine.
2. The main features of this machine are: one-time complete inner and outer bag packing, avoid contacting material by hand.
3. Inner bag is made by filter paper, which can be automatically packed with thread and label. Outer bag is made from compound film.
4. Machine body and product touching part are made by 304 stainless steel.
After-sales service:
Guidance and suggestions to machines' choice
Working video and commissioning available.
Factory/shop layout guidance
Complete installation and commissioning
Packing and ahipping:
Packing details(All products will have been stickly quality checked before packing)
1. Outside packing: Standard export wooden case
2. Inner packing: Strech film
Technical data:
| Model | BSPM-F |
| Biggest Film width | 300 mm |
| Bag size | W:30-100mm L:30-165mm |
| Packing speed | 35~65 packs/minute |
| Measure method | auger weighing |
| Sealing type | Three-side seal |
| Measure weight | 1g ~100 g (when pack 2 g bag, accuracy is ±0.05g) |
| Power | 1.5 kw |
| Power supply | 1P/220V/50HZ (can be customized) |
| Machine size | 1100*850*1800mm |
| Weight | 220 kg |
