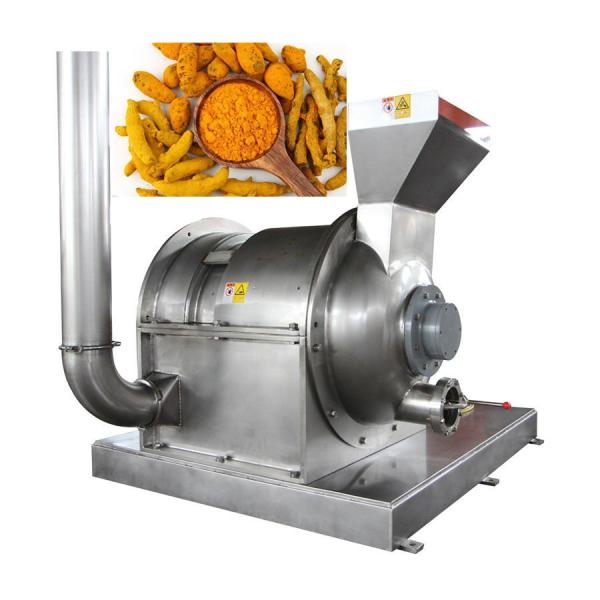

75kw 100-2000kg/H Turmeric Crusher Machine

Brand Name : Brightsail

Model Number : BSDF

Certification : CE ISO

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 15 sets per month

Delivery Time : 30-35 days

Packaging Details : container

Product Name : Turmeric Crusher Machine

Capacity : 100-2000 kg/h

Fineness : 10-120 mesh

Motor : 22-75kw

Discharge motor : 0.75-1.5kw

Blower : 7.5-18.5 kw

Voltage : customized

Package : container

Contact Now

100-2000 kg/h Efficient Turmeric Crusher Machine For Industry

BSDF turmeric ultrafine crusher is our most advanced hammer mill set. It has a good grinding effect for all kinds of spice(such as chilli, turmeric, coriander seeds), of course, for some other food materials(like chickpea, cassava, feed, herbs,etc), the grinding effect is also good.

75kw 100-2000kg/H Turmeric Crusher Machine

Detailed Images:

75kw 100-2000kg/H Turmeric Crusher Machine Mill part:
this is the mill part,
It combines corse crusher area, middle fine milling area, and super fine milling area together.
75kw 100-2000kg/H Turmeric Crusher Machine Work method
1) From right to left,
they are coarse crush area,middle fine mill area and fine milling area and blast area.
Material fed in will be milled by the three areas to become fine powder.
2) change powder size by changing speed.

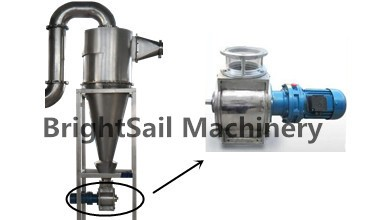

75kw 100-2000kg/H Turmeric Crusher Machine Cyclone part
(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel
and to clean it and dismantle is convinient.
75kw 100-2000kg/H Turmeric Crusher Machine Pulse Dust Collecting box
(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.

Main features:

1) BSDF turmeric micro pulverizer has three knife groups in the mill chamber: Coarse Crusher, Middle Fine Mill and Fine Mill, Normal hammer mill only have one.
2) BSDF doesn't need a sieve or screen mesh in mill chamber, change powder size by changing speed by inverter. Normal hammer mill has.
3) Temperature of BSDF's mill chamber will not rise or only rise a little, quality of powder not be affected by heat. Temperature of normal hammer mill's chamber is much higher.
4) With the same power consumption, BSDF's capacity is much bigger than normal hammer mill.

This machine has a very good effect for milling different kinds of food,like spice,herbs,milk powder and chemicals,feed...etc.

Technical data:

Model BSDF-350 BSDF-450 BSDF-550 BSDF-650 BSDF-750
Capacity(kg/h) 100-200 300-500 400-800 600-900 800-1300
Fineness(mesh) 20-120 20-120 20-120 20-120 20-120
Grind motor(kw) 22 37 45 55 75
Discharge motor(kw) 0.75 0.75 0.75 1.1 1.5
Blower(kw) 7.5 15 15 18.5 18.5
Rotor speed(rpm) 3500-4500 3300-4200 2900-3600 2400-3100 2100-2700

drawing:

75kw 100-2000kg/H Turmeric Crusher Machine

Our Services:


1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.

FAQ:

1) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
