SS304/316 Turmeric Grinding Machine For Sale
Product Description:
BS turmeric crushing machine has a very good effect for different kinds of spices, like chilli, pepper, cinnamon, cumin, bandits, cardamom, garlic, star anise, cloves, geraniol, turmeric, ginger, fennel, angelica and other material with high content of oil or fiber. For root, herb and leaf, the grinding effect is also good.
This machine is made up of crusher part, cyclone, dust collecting box, blower and control box.It uses fixed plate and the relative motion between the activity hammer, making materials impacted and shredded under effect of centrifugal force.
Detailed Images of BS pulverizer machine:

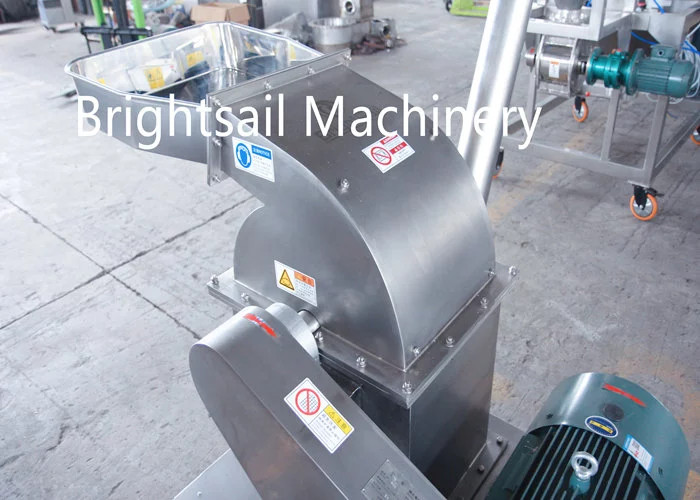

 | Crusher part
Unique design,crusher part won't get hot even though working for hours.
It can grind spice and oil material with oul content reach 10%~20%.
Color and nature of material won't change.
Cutter inside mill chamber |
 | Cutter inside mill chamber
Work method: It uses fixed plate and relative motion between the hammer knife, material in the chamber is crushed,shredded under effect of centrifugal force. |
 | TO MAKE SURE BETTER QUALITY
1) We use motor from ABB/Siemens/WEG
2) We adopts electrical control parts from Schneider/Delixi
3) We use bearings from SKF |
Drawing:
Main features:
1) Simple structure ,easy in installation and maintenance.
2) No dust during production, and dust can be collected in dust collecting box.
3) During production,temperature remains normal, will not get hot. So material's color and nature won't change.
4) It can grind spice and oil material with oil content 10%~20%.
Technical data:
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 | 8800*2000*3300 |
Why Choose Us:
Within years, we have exported machine to over 30 countries.
For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.
So you do not need to worry about the export procedures because we know all the procedures.
Our BS spice powder grinding machine is a good selling product,you can feel free to choose us .
FAQ:
1) Q: How do you pack your machines?
A: If it's a small machine, it's packed in wooden cases.
If it is a large machine or many machines, we will take the container, we will split the machine into several parts, then wrap the machine with wrapping film, and then fix it in the container with wire rope to prevent them from shaking during transportation.
Our Services:
1. Pre-sales service:
Inquiry and consulting support with 24 hours;
Machine sample test service;
Factory visit
2. After-sales service:
Instructing how to install and use the machine;
one year warranty;
video support;
engineer is available to go to user's factory to help install and train.
