20 To 1800kg Per Hr Capacity 60 To 2500 Mesh Grinding Fineness Konjac Crushing Machine
Product introduction:konjac crushing machine
BSP konjac pulverizer (air classifier) is a kind of pulverizer that can produce extremely fine powder. Used for crushing sugar, the output can reach 60~1000 mesh. For the grinding of dried ginger and turmeric, this type can also be ground into a very fine powder. And the mill can produce very uniform powder, and the distribution of the powder is very uniform.
Technical data:konjac crushing machine
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:konjac crushing machine
The material enters the mill chamber through the screw conveyor, where it is sheared and ground by the rapidly rotating blades. The powder enters the classification chamber through the guide ring. When the grading wheel rotates, both air and centrifugal force act on the powder. The particles with a particle size larger than the critical diameter (classified particle diameter) have a larger mass and are thrown back into the mill chamber to be crushed again. The particles with a particle size smaller than the critical diameter enter the cyclone separator and dust box.
Advantages:konjac crushing machine
1. Compact design and reasonable structure. A grading mechanism is set in the material to make grinding and grading work at the same time and reduce energy consumption.
2. The machine is equipped with a fan for continuous heat dissipation, which is suitable for grinding heat sensitive materials.
3. Strong adaptability and narrow particle size distribution. The particle size of the product is uniform, and the fineness can reach 80-320 mesh.
4. Under the condition of not stopping the machine, adjusting the rotating speed or the air classifier can realize the uniform distribution of product particle size.
5. The top cover of the main engine is opened by pneumatic spring. The structure of the main body can be opened on both sides, so that there are no obstacles when cleaning and repairing the internal parts.
6. The main grinding parts are made of high-grade alloy tool steel, which greatly extends the service life or replacement cycle of wear parts.
7. The bearing system adopts imported high-speed precision bearing, which makes the whole machine run smoothly with low vibration and noise.
8. The pipeline has a quick disassembly structure, which is convenient for disassembly and cleaning.
9. Equipped with cyclone separator and dust collector, no dust is produced in the production process. The dust collecting bag can effectively collect the fine powder in the air flow, so as to meet the requirements of clean and environmental protection of waste gas emission.
10. The fine powder collected in the bag can be effectively recycled. Reduce material wear.
Grinding effect:konjac crushing machine

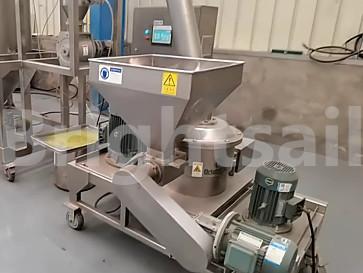

Detailed images:konjac crushing machine
