Customized Powder Mill Grinder ACM Mill Pulverizer Machine

Name: Customized Powder Mill Grinder ACM Mill Pulverizer Machine
Brand: Brightsail
Price: 1 USD

Wholesale Customized Powder Mill Grinder ACM Mill Pulverizer Machine from china suppliers

Brand Name : Brightsail

Model Number : BSP

Certification : CE ISO

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : 30-35 days

Packaging Details : Container

Product name : Powder Mill Grinder ACM Mill Pulverizer Machine

Material : SS304/SS316L

Power supply : customized

Type : ACM mill

Input size : <15mm

Fineness : 60-2500 mesh

Application : food, pharmacy, chemical, etc

Usage : making powder

Function : fine grinding

Contact Now

Powder Mill Grinder ACM Mill Pulverizer Machine

I.The features of ACM Mill

Customized Powder Mill Grinder ACM Mill Pulverizer Machine

1)Air classifier is inside the mill chamber.

2)By this type grinder, the output powder size is very fine and even.

3)The whole production is continuous and dust-free

4)Easy to operate with simple button control.

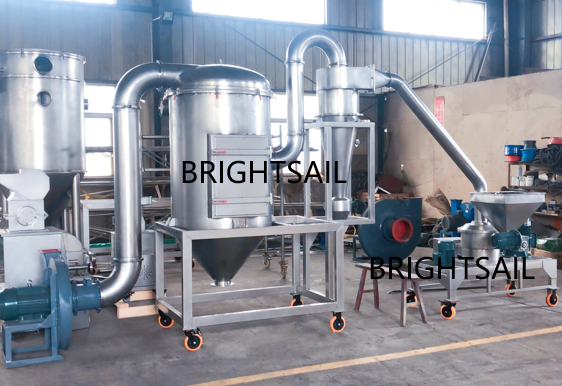

II.Main parts of the ACM Mill

1.the milling part

2.cyclone(with discharge valve at the bottom)

3.pulse dust collecting box

(dust collecting box, pulse,dust collecting bags with disassembled frames)

4.blower

5.electric cabinet(standard type is button switch)

III.Application

It can be used to grind dried sugar, ginger, turmeric, chickpeas, etc into very fine powder.

Customized Powder Mill Grinder ACM Mill Pulverizer Machine

IV.Technical data

Model	BSP-350	BSP-450	BSP-500	BSP-750
Input size(mm)	<15	<15	<15	<15
Fineness(mesh)	60-2500	60-2500	60-2500	60-2500
Capacity(kg/h)	20-200	40-500	60-800	120-1800
Crush motor(kw)	11	18.5	30	55
Grade motot(kw)	1.5	4	5.5	11
Blower(kw)	7.5	11	18.5	37
Feed motor(kw)	0.55	0.55	0.75	1.5
Discharge motor(kw)	0.75	0.75	1.1	1.5
Speed of principle axia(rpm)	-6500	-5350	-4600	-3100
Grading impeller speed(rpm)	4000	4000	3500	3000
Weight(kg)	1600	1800	2300	3100

FAQ Q: What will be the lead time of the machine?

A: Usually,the lead time is 30 work days.

Q: What certificate do you have?

A: We have CE,ISO certificates.

Q: How to install the machine?

A: We provide English electric diagram, and English manual.

99% clients can install the machine by themselves under our guidance.
